200B Series

Key Features

• Heavy-duty, corrosion- and UV-resistant PVC construction with stainless steel spring and hardware
• Provides consistent operation
• Slow-closing design
• Reduces water hammer and resulting stress on the system

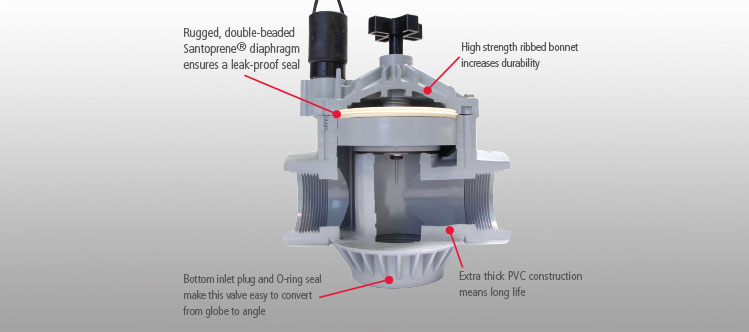

• ugged, double-beaded SANTOPRENE® diaphragm
• Ensures a leak-proof seal
• nternal and external bleed (flush mode)
• Allows for manual operation
• ccepts OmniReg® modular pressure regulator
• Ensures consistent performance
• igh-strength ribbed bonnet and bottom inlet
• Increases durability
• nique three-way stainless steel Bonnet
• Screws accept Phillips, flat-blade and hex-driver tools for easy servicing without removal from the system

• Operating
  Specifications

  • Flow range: 5-120 GPM
  • Pressure range: 20-150 psi

• Electrical
  Specifications

  • Solenoid: 24 V ac
  • Inrush volt-amp: 24 V ac-9.6 VA
  • Inrush current: .4 amp
  • Holding volt-amp: 24 V ac-4.8 VA
  • Holding current: .2 amp

• Models & Dimensions

  Model	Description
  214B	1” NPT threads, flow control
  216B	1½” NPT threads, flow control
  217B	2” NPT threads, flow control

  Dimensions

  • 214B: H: 6 ½”, W: 2 ½”, L: 4 ½”
  • 216B: H: 7¾”, W: 4 ¼”, L: 5 ½”
  • 217B: H: 8 ¾”, W: 5 ¼”, L: 6 ¼”

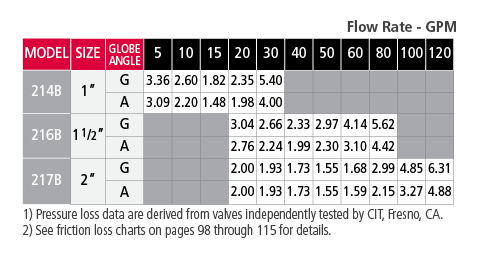

• Friction
  Loss Data

•

Optional

Accessories

• Recycled-water solenoid kit (RW60-KIT); purple solenoid with purple warning tag
• DC latching solenoid (DCL)
• Note: Maximum pressure for a valve that utilizes latching solenoid is 120 psi.
• Weatherproof gauge (SPK-100)
