IBV

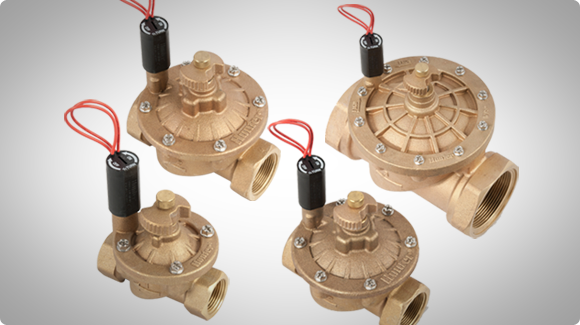

Constructed from solid brass to provide years of trouble-free operation in any water condition, the Hunter IBV is a valve created for the fiercest conditions found on a commercial site. Featuring a brass body and bonnet—built to handle up to 220 PSI—the IBV also boasts a sturdy stainless steel flow control stem. The IBV was designed from the ground up to incorporate many of the industry-leading features found in Hunter valves including the solenoid and ICV diaphragm. Add in a pair of options and provide the IBV with an even higher degree of dependable performance: the Accu-Sync pressure regulator maintains constant downstream pressure and the Filter Sentry™ system keeps the valve free of debris found in reclaimed water or ponds. Built to withstand the rigors of high-pressure situations, the IBV is the commercial-grade valve solution for years of reliable operation.

• External and internal manual bleed allows quick and easy “at the valve” activation

  Inlet: 1″, 1½”, 2″, 3″ BSP

  Double-beaded diaphragm seal design assures leak free performance

  Fabric reinforced EPDM diaphragm and EPDM seat ensure superior performance in all conditions

  Optional DC latching solenoids enable Hunter’s battery-powered controllers

  Low flow capability allows use of Hunter’s micro irrigation products

  Encapsulated 24 VAC solenoid with captive plunger for hassle-free service

  Temperature rating: 150° F

  Warranty period: 5 years

  HEAVY-DUTY FLOW CONTROL



  Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone. Includes stainless steel stem and a brass control knob with manual “On” vent port.

  FILTER SENTRY™



  Filter Sentry scours the filter clean with a wiper that slides up and covers the entire screen when the valve opens. Even more, the wiper continues to scrub the filter’s upper part during valve operation. Filter Sentry can be added after the valve is installed as well.

  ACCU-SYNC™ PRESSURE REGULATION



  Avoid sprinkler over-pressure conditions and experience significant water savings with Hunter’s Accu-Sync pressure regulator. This option is available in adjustable pressure or fixed pressure models.

•

  IBV-101G

  Height: 4½”
  Length: 3¼”
  Width: 5¼”



  IBV-151G

  Height: 6¼”
  Length: 5¼”
  Width: 6″



  IBV-201G

  Height: 6″
  Length: 5¼”
  Width: 7″



  IBV-301G

  Height: 9″
  Length: 9″
  Width: 7¼”

• IBV – SPECIFICATION BUILDER: ORDER 1 + 2 + 3 + 4

  1Models

  IBV-101G = 1″ globe valve

  IBV-151G = 1½” globe valve

  IBV-201G = 2″ globe valve

  IBV-301G = 3″ globe valve

  2Inlet/Outlet

  (blank) = Female NPT

  3Options
  (Factory Installed)

  (blank) = No option

  FS = Filter Sentry

  DC = DC latching solenoid

  4Options
  (User Installed)

  (blank) = No option

  R = Reclaimed water ID tag

  CC = Solenoid conduit cover

  DC = DC latching solenoid

  AS-ADJ = Accu-Sync adjustable pressure regulator

  AS-xx* = Accu-Sync pressure regulatorxx* Choose Accu-Sync pressure regulator:
  20 = 20 PSI,
  30 = 30 PSI,
  40 = 40 PSI,
  50 = 50 PSI,
  70 = 70 PSI
  Examples:

  IBV-101G = 1″ globe valve

  IBV-151G – FS – R = 1½” globe valve, Filter Sentry, and reclaimed water ID tag

• ICV & IBV COMPARISON CHART

  Premium Valves That Can Conquer All Low flow to high flow, clean water to dirty water, low pressure to high pressure, Hunter provides a valve option that can handle any situation for years to come.
  	ICV	ICV FILTER SENTRY™	IBV	IBV FILTER SENTRY™
  QUICK SPECS
  Size	1″, 1½”, 2″, 3″	1″, 1½”, 2″, 3″	1″, 1½”, 2″, 3″	1″, 1½”, 2″, 3″
  Flow	0.1 to 300 GPM	0.1 to 300 GPM	0.1 to 300 GPM	0.1 to 300 GPM
  FEATURES
  Captive Bonnet Bolts
  EPDM Diaphragm and Seat	Standard	Standard	Standard	Standard
  Warranty	5 Years	5 Years	5 Years	5 Years
  ADVANCED FEATURES
  Flow Control
  Filter Sentry	Field Installed	Factory Installed	Field Installed	Factory Installed
  ACCU-SYNC Capable
  Reclaimed Water ID Handle	Field Installed	Factory Installed
  Reclaimed Water ID Tag	Field Installed	Factory Installed	Field Installed	Factory Installed
  APPLICATIONS
  Residential
  Commericial
  Potable water
  Reclaimed water
  Secondary water
  Pressure regulation
  High pressure systems
  Low pressure systems
  High Temperature locations
