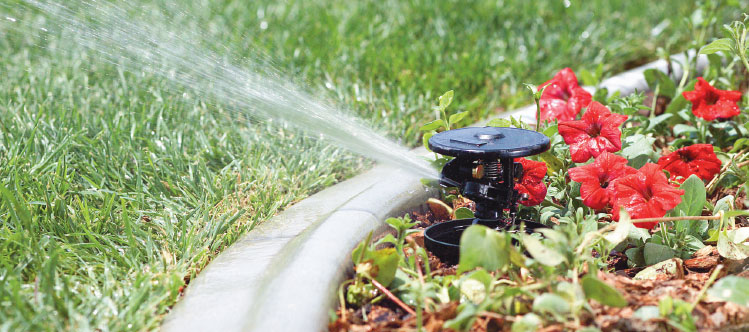

Titan Impact Rotor

Key Features

• Double-Weighted spray guide arm
• Controls stream and prevents side splash onto buildings and walkways
• 5 interchangeable, color-coded MPR nozzles
• Pre-installed with black 3.0 gpm nozzle (no tools needed to change nozzles)
• Heavy-duty, high impact case
• With sturdy, reinforced ribbed design
• Pressure-activated wiper seal
• Assures reliable pop-up and pop-down
• Radius reduction screw
• Allows for up to 25% in-field radius reduction
• Unique lip case design
• Aids in setting proper installation height, prevents grass and weeds from growing into head and minimizes backwash
• Replaces competitive sprinklers
• Simple upgrade for other impacts, including Rain Bird® Maxi-Paw®
• Straight flow-through path
• Ensures low pressure loss and positive action–even in very dirty water conditions

Operating Specifications

• Filter screen to prevent clogging
• Removable cap for easy servicing and debris removal
• Full- and part-circle adjustable from 20° to 360º
• Radius: 32’ – 45’
• Flow rate: 1.50–7.50 GPM
• Recommended operating pressure range: 30–50 psi
• Maximum operating pressure: 60 psi
• Recommended spacing: 22’ to 45’
• Trajectory: 18°
• Pop-up to nozzle: 3”
• Combination ½” or ¾” female-threaded inlet
• Dimensions: – Body diameter: 2½”–5” – Cap diameter: 5” – Height: 9 3/10”
• Two-year warranty
